STR-A High Power Fiber
Laser Cutting Machine
Engineered for heavy-duty industrial fabrication. The STR-A delivers uncompromising stability, hyper-precision cutting, and exceptional edge quality for sheet metals. Built to run 24/7.
Technical Parameters
| Specification | STR-A Details |
|---|---|
| Working Area | 3050mm × 1530mm/4000mm×2000mm/6000mm×2000mm/8000mm×2000mm, etc. |
| Laser Power Options | 12000W / 20000W / 30000W / /40000W/60000W |
| Max Moving Speed | 100 m/min |
| Max Acceleration | 1.0 G |
| X/Y Axis Positioning Accuracy | ±0.03 mm |
| X/Y Axis Repositioning Accuracy | ±0.02 mm |
| Transmission System | Precision Rack and Pinion / Dual Drive |
| Power Supply Voltage | 380V 50Hz/60Hz, 3 Phase |
World-Class Configurations

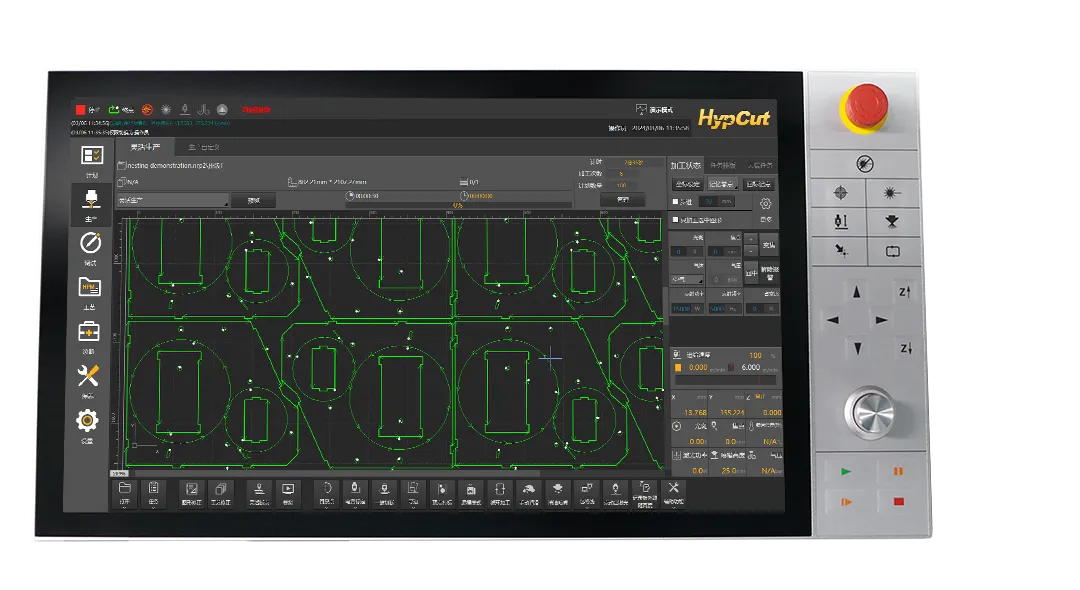

Intelligent CNC System
High-end intelligent EtherCAT bus controller designed for high power fiber laser above 8kW,featured by out of box service, easy to install and adjust, full solution functions, supports custom, automatic and digitization solutions.
Auto-Focus Cutting Head
Free your eyes, intelligently sense edges Achieve great improvements in operational safety and processing efficiency. One-step reset, resume work instantly. Quick recovery after impact, reducing usage costs.
High-Efficiency Laser Source
The single-module continuous fiber laser is a high-power fiber laser with high electro-optical conversion efficiency, compact size, good beam quality, and maintenance-free operation.
Heavy-Duty Steel Welded Bed
Constructed from thick steel plates, subjected to heat treatment, milling, nature cooling and high precision welding. Guarantees zero deformation for up to 20 years of continuous use.
Aviation Tensile Aluminum Beam
Extruded under 4300 tons of pressure. Offers incredible rigidity while remaining lightweight, enabling ultra-fast acceleration and moving speeds.
Long-Life Stable Taiwan Rack
The rack and pinion is one of the core components of the transmission system of a laser cutting machine. It is mainly responsible for converting the rotary motion of the servo motor into linear motion, thereby driving the crossbeam or cutting head to move at high speed and with precision.
Fiber Laser Cutting Capacity Guide
Engineered for precision and heavy-duty industrial applications. Review our standard cutting parameters for 1.5kW to 6kW laser sources to determine the optimal configuration for your manufacturing needs.
| Laser Power | Carbon Steel (Max) | Stainless Steel (Max) |
|---|---|---|
| 20000W | 45 mm | 40 mm |
| 30000W | 50 mm | 40 mm |
| 40000W | 70 mm | 70 mm |
| 60000W | 100 mm | 100 mm |
How to Choose the Right Power?
-
1
Identify Primary Materials: Carbon steel requires oxygen for thicker cuts, while stainless steel relies on high-pressure nitrogen. Ensure your power choice aligns with your most frequently cut metal.
-
2
Assess Production Volume: If your daily workload involves cutting 12mm carbon steel continuously, do not choose a 1.5kw machine (its absolute limit). Upgrade to 2kW or 3kW for faster speeds and burr-free edges.
-
3
Future-Proof Your Investment: Business grows. Selecting a machine 1-2 levels higher than your current absolute minimum requirement saves future upgrade costs.
Or contact us directly at admin@strmachine.com
Flawless Cutting Samples
Witness the smooth edges, intricate details, and dross-free finishes achieved by the STR-A across various metal types.
Maintenance & Operations
Laser Consumables Replacement Guide
To ensure your LSENTR fiber laser cutting machine operates at peak performance and maintains cutting precision, regular inspection and replacement of consumables is critical. Below is the recommended replacement frequency and estimated annual usage for standard B2B production environments.
Cutting Nozzle
Directly affects gas flow and cut quality. Replace immediately if deformed by collisions or heavy slag accumulation.
Protective Lens
Protects internal optics from spatter. Must be kept perfectly clean. Replace if burn spots or permanent debris are visible.
Ceramic Ring
Transmits capacitance signals for height adjustment. Prone to cracking upon collision. Requires replacement if signal is unstable.
Dust Cover (Bellows)
Shields linear guides and racks from metallic dust. Replace if torn or heavily burnt to prevent mechanical failure.
Table Slats (Blades)
Supports the metal sheets during cutting. Continuous laser reflection and slag build-up will eventually compromise levelness. Customer can cutting blades by themselves.
Need Genuine Consumables?
Using OEM parts ensures machine longevity and warranty compliance. Request a quote for your annual supply today.
Frequently Asked Questions
What materials can the STR3015A cut?
Do you provide installation and training?
What is the warranty period?
Partner With Us
Discuss your specific fabrication needs with our technical team. We provide tailored laser solutions to optimize your production line.
